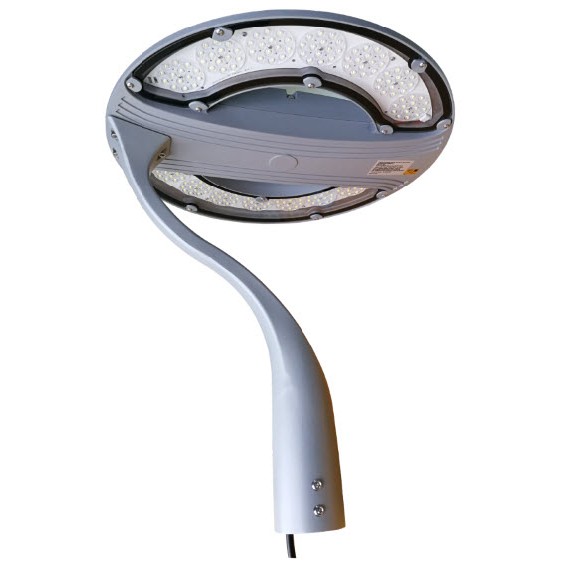

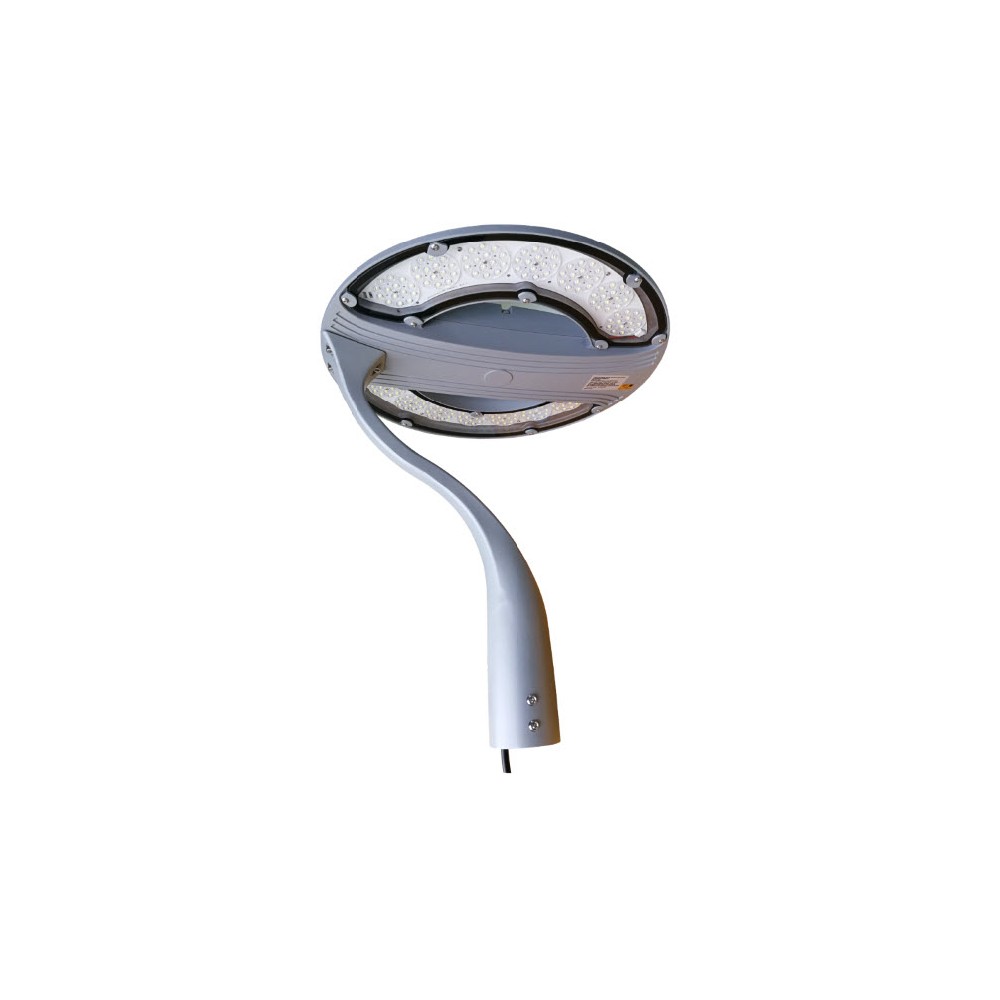

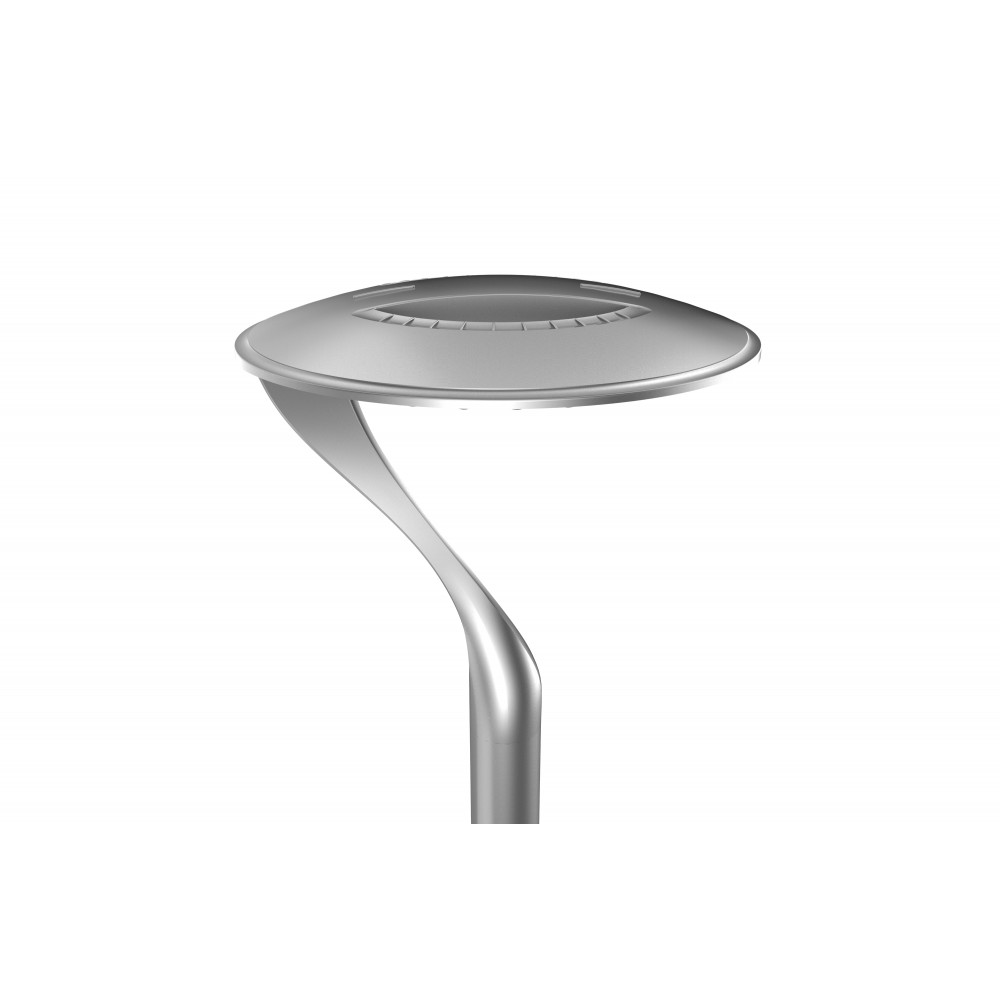

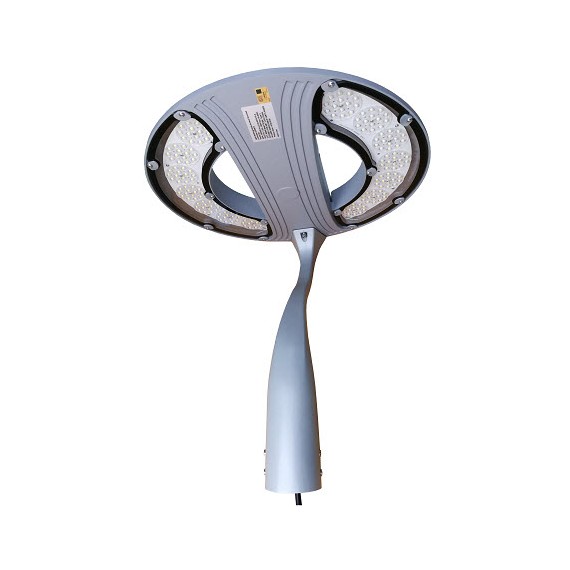

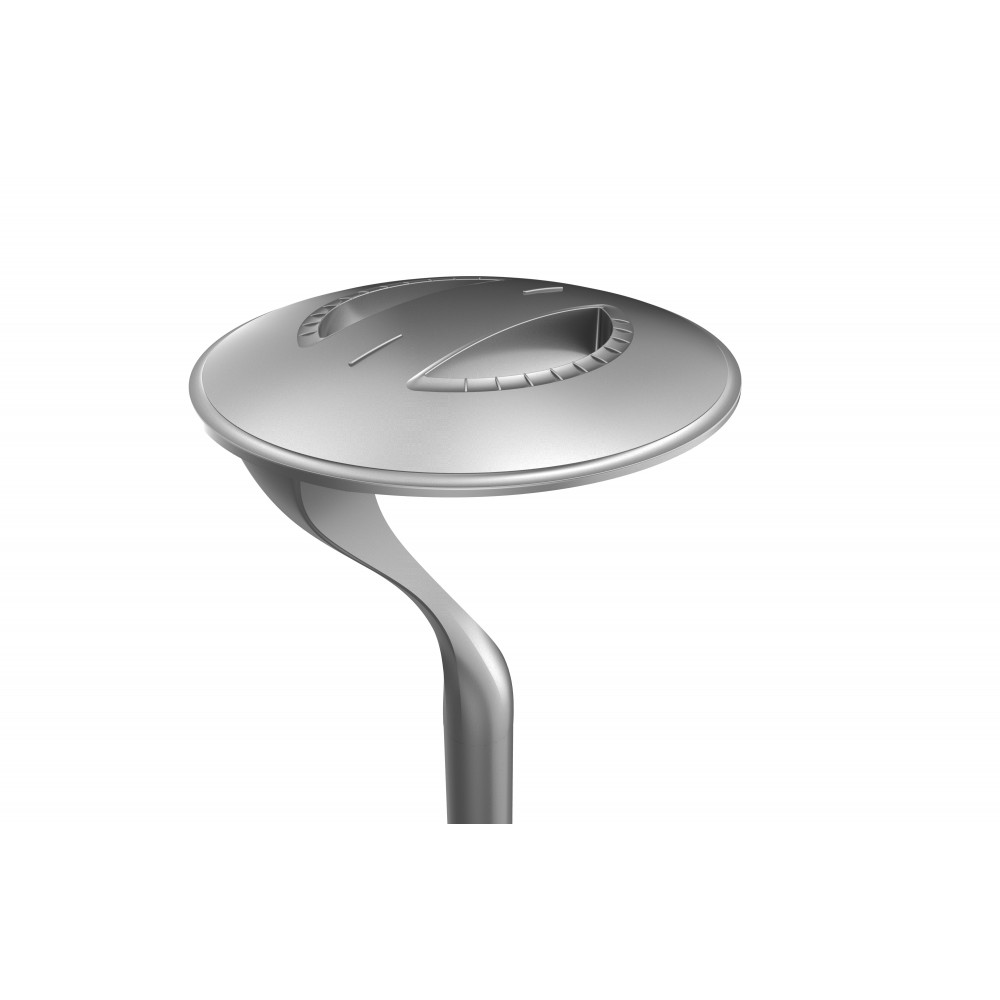

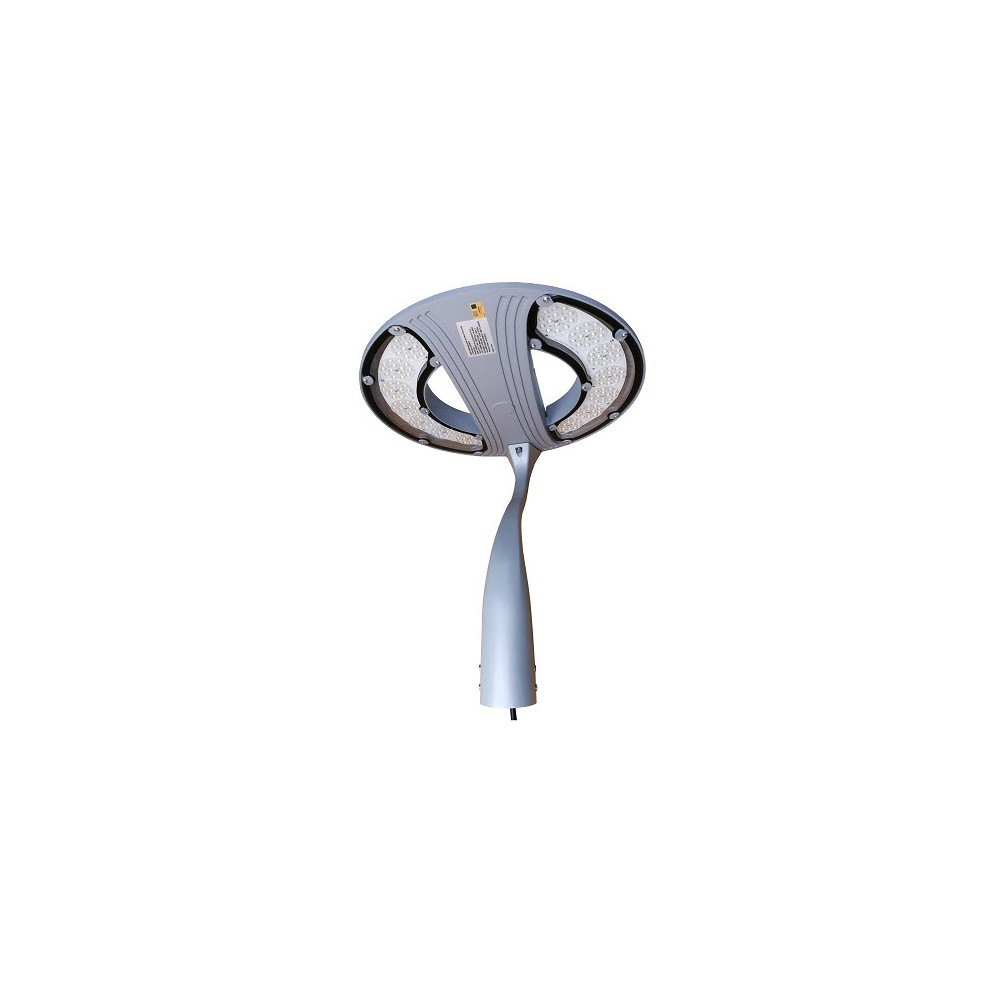

CAMILA G1 S 25W/830 S ST P1 R7015 @ TUNGSRAM
Merke:
Installation and maintenance
Mounting options:
• Post top coupler ø66mm
• Side mount: ø48-60 mm (pole)
• Recommended mounting height: 4-15m
• Weight: 9,5 kg
• Only two hand-tools required for installing the fixture
• Storage temperature up to 85ºC.
• Ambient temperature from -40ºC to +50ºC
• Length of precable: 3m
Optics

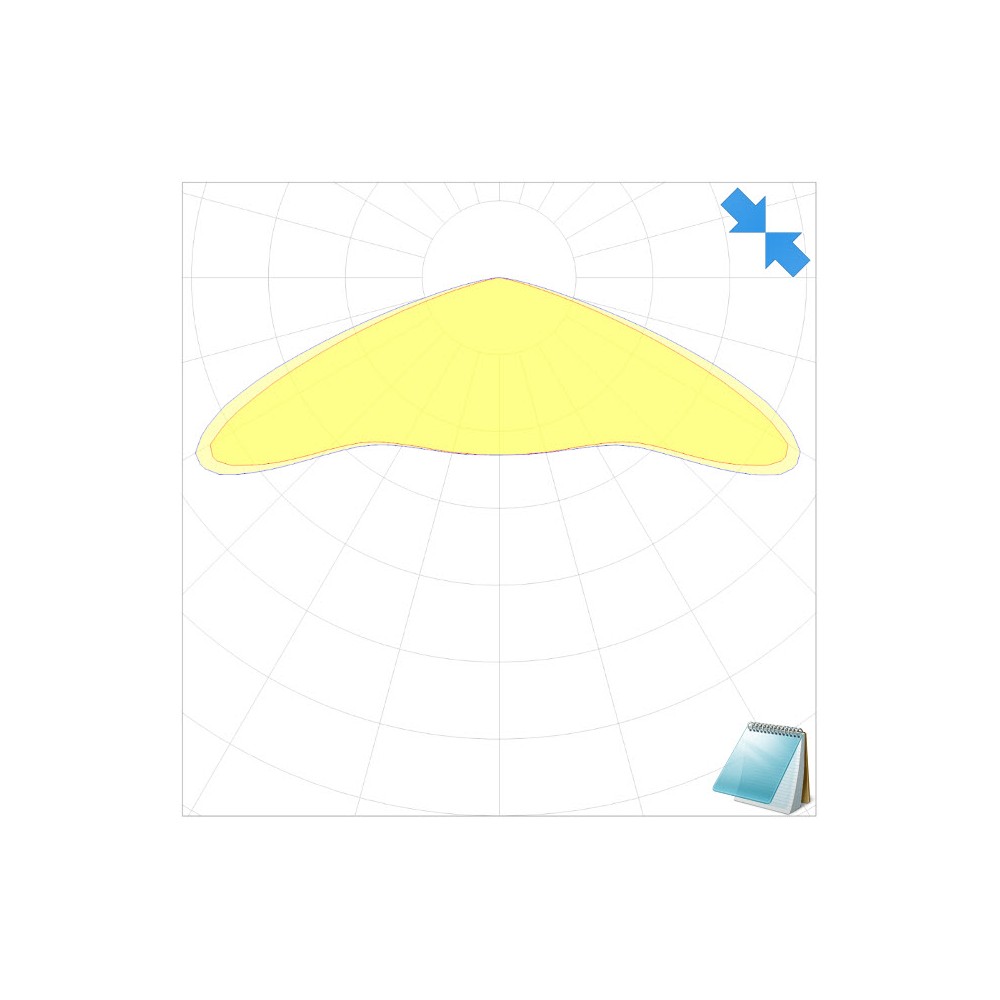

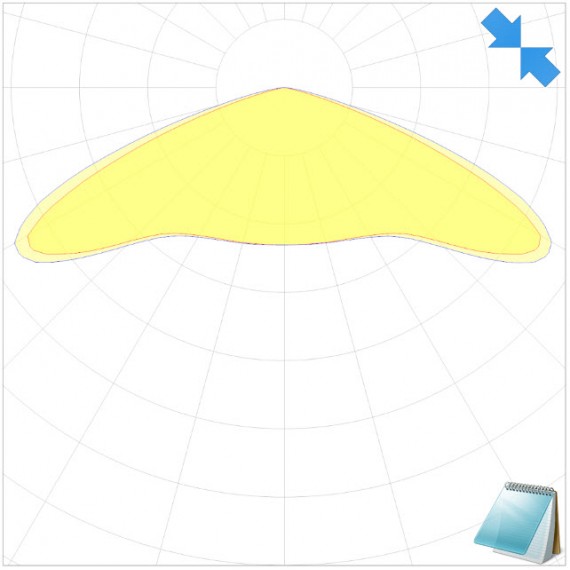

Available photometric distributions:
• A: asymmetric
• S: symmetric
Rated colour rendering index: >80
Rated correlated colour temperatures:2700K, 3000K, 4000K
S/P rating: 2700K - 1.239, 3000K - 1.373, 4000K - 1.674
ULOR: 0
Rated initial chromaticity co-ordinate values:
2700K - CIE(x=0.4578, y=0,4101) 5SDCM
3000K - CIE(x=0.43, y=0.403) 5SDCM
4000K - CIE(x= 0.38, y= 0.38) 5SDCM
Les merShow less
Artikkelnummer:
93119753
Favoritt0
Installasjon og vedlikehold monteringsalternativer:
• Stolpetoppkobling ø66mm
• Sidefeste: ø48-60 mm (stang)
• Anbefalt monteringshøyde: 4-15m
• Vekt: 9,5 kg
• Kun to håndverktøy kreves for montering av armaturet
• Lagringstemperatur opp til 85ºC.
• Omgivelsestemperatur fra -40ºC til +50ºC
• Lengde på prekabel: 3m Optikk Tilgjengelige fotometriske fordelinger:
• A: asymmetrisk
• S: symmetrisk Klassifisert fargegjengivelsesindeks: >80 Klassifiserte korrelerte fargetemperaturer: 2700K, 3000K, 4000K S/P-vurdering: 2700K - 1.239, 3000K - 1.373, 4000K - 1.674 RULOR koordinert 2-00 verdi: 1.674 R2-00 CIE(x=0,4578, y=0,4101) 5SDCM 3000K - CIE(x=0,43, y=0,403) 5SDCM 4000K - CIE(x=0,38, y=0,38) 5SDCM
